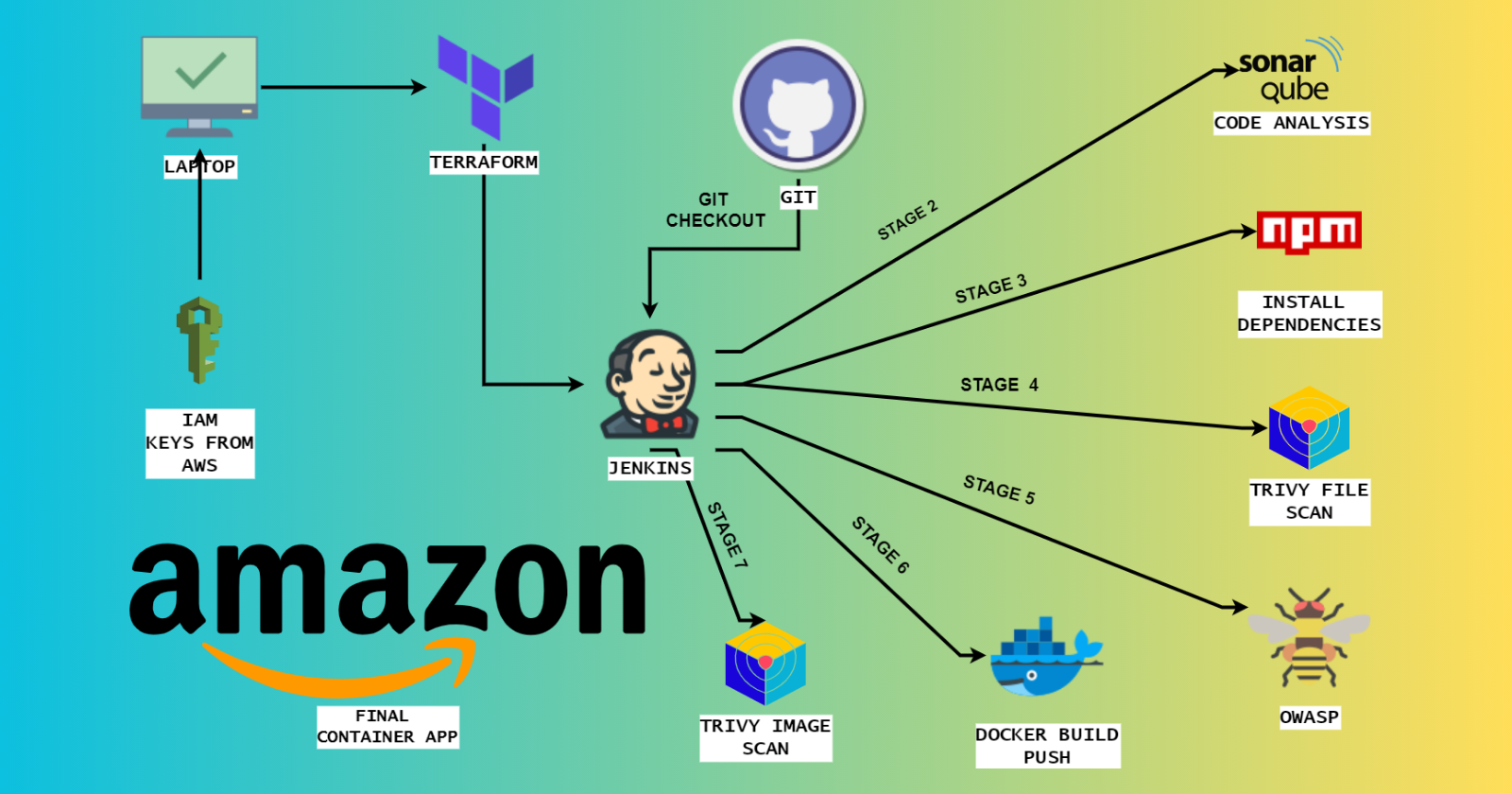

Amazon App Deployment: A DevSecOps Approach with Terraform and Jenkins CI/CD

mrcloudbook.com

·

Welcome to our in-depth guide on deploying an Amazon app with a strong focus on security through a DevSecOps approach. In today’s fast-paced digital landscape, building and deploying applications not only requires speed but also airtight security. That’s where DevSecOps comes into play, blending development, security, and operations into a single, unified process. In this blog post, we will embark on a journey where we’ll leverage Terraform, Jenkins CI/CD, SonarQube, and Trivy to create a robust and secure pipeline for deploying applications on Amazon Web Services (AWS). Whether you’re an experienced developer looking to enhance your DevSecOps skills or a newcomer eager to explore this exciting intersection of software development and security, this guide has something valuable to offer. Let’s dive in and explore the steps to safeguard your Amazon app while ensuring smooth and efficient deployment.

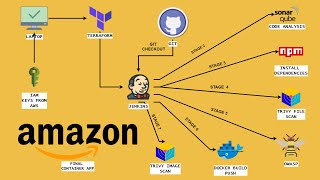

If you have doubts watch this video on YouTube

GITHUB LINK

https://github.com/Aj7Ay/Amazon-FE.git

Navigate to the AWS console

Click the “Search” field.

Search for IAM

Click “Users”

Click “Add users”

Click the “User name” field.

Type “Terraform” or as you wish about the name

Click Next

Click “Attach policies directly”

Click this checkbox with Administrator access

Click “Next”

Click “Create user”

Click newly created user in my case Ajay

Click “Security credentials”

Click “Create access key”

Click this radio button with the CLI

Agree to terms

Click Next

Click “Create access key”

Download .csv file

Go to vs code or Cmd your wish

aws configure

Provide your Aws Access key and Secret Access key

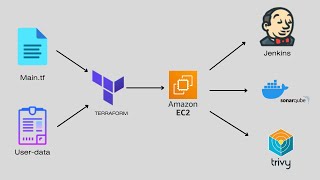

main.tf

resource "aws_instance" "web" {
  ami                    = "ami-0f5ee92e2d63afc18"   #change ami id for different region
  instance_type          = "t2.large"
  key_name               = "Mumbai"
  vpc_security_group_ids = [aws_security_group.Jenkins-sg.id]
  user_data              = templatefile("./install.sh", {})
  tags = {
    Name = "Jenkins-sonarqube"
  }
  root_block_device {
    volume_size = 30
  }
}
resource "aws_security_group" "Jenkins-sg" {
  name        = "Jenkins-sg"
  description = "Allow TLS inbound traffic"
  ingress = [
    for port in [22, 80, 443, 8080, 9000, 3000] : {
      description      = "inbound rules"
      from_port        = port
      to_port          = port
      protocol         = "tcp"
      cidr_blocks      = ["0.0.0.0/0"]
      ipv6_cidr_blocks = []
      prefix_list_ids  = []
      security_groups  = []
      self             = false
    }
  ]
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
  tags = {
    Name = "jenkins-sg"
  }
}

provider.tf

terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 5.0"
    }
  }
}
# Configure the AWS Provider
provider "aws" {
  region = "ap-south-1"  #change your region
}

install.sh

This will install Jenkins and Docker and Sonarqube and trivy

#!/bin/bash
sudo apt update -y
wget -O - https://packages.adoptium.net/artifactory/api/gpg/key/public | tee /etc/apt/keyrings/adoptium.asc
echo "deb [signed-by=/etc/apt/keyrings/adoptium.asc] https://packages.adoptium.net/artifactory/deb $(awk -F= '/^VERSION_CODENAME/{print$2}' /etc/os-release) main" | tee /etc/apt/sources.list.d/adoptium.list
sudo apt update -y
sudo apt install temurin-17-jdk -y
/usr/bin/java --version
curl -fsSL https://pkg.jenkins.io/debian-stable/jenkins.io-2023.key | sudo tee /usr/share/keyrings/jenkins-keyring.asc > /dev/null
echo deb [signed-by=/usr/share/keyrings/jenkins-keyring.asc] https://pkg.jenkins.io/debian-stable binary/ | sudo tee /etc/apt/sources.list.d/jenkins.list > /dev/null
sudo apt-get update -y
sudo apt-get install jenkins -y
sudo systemctl start jenkins
sudo systemctl status jenkins

#install docker
sudo apt-get update
sudo apt-get install docker.io -y
sudo usermod -aG docker ubuntu
newgrp docker
sudo chmod 777 /var/run/docker.sock
docker run -d --name sonar -p 9000:9000 sonarqube:lts-community

#install trivy
sudo apt-get install wget apt-transport-https gnupg lsb-release -y
wget -qO - https://aquasecurity.github.io/trivy-repo/deb/public.key | gpg --dearmor | sudo tee /usr/share/keyrings/trivy.gpg > /dev/null
echo "deb [signed-by=/usr/share/keyrings/trivy.gpg] https://aquasecurity.github.io/trivy-repo/deb $(lsb_release -sc) main" | sudo tee -a /etc/apt/sources.list.d/trivy.list
sudo apt-get update
sudo apt-get install trivy -y

Terraform commands to provision

terraform init
terraform validate
terraform plan
terraform apply

output

<instance-ip:8080> #jenkins
sudo cat /var/lib/jenkins/secrets/initialAdminPassword

Unlock Jenkins using an administrative password and install the suggested plugins.

Jenkins will now get installed and install all the libraries.

Create a user click on save and continue.

Jenkins Getting Started Screen.

Copy your Public key again and paste it into a new tab

<instance-public-ip:9000>

Now our sonarqube is up and running

Enter username and password, click on login and change password

username admin
password admin

Update New password, This is Sonar Dashboard.

Check trivy version

trivy --version

Goto Manage Jenkins →Plugins → Available Plugins →

Install below plugins

1 → Eclipse Temurin Installer (Install without restart)

2 → SonarQube Scanner (Install without restart)

3 → NodeJs Plugin (Install Without restart)

Goto Manage Jenkins → Tools → Install JDK(17) and NodeJs(16)→ Click on Apply and Save

Grab the Public IP Address of your EC2 Instance, Sonarqube works on Port 9000, so <Public IP>:9000. Goto your Sonarqube Server. Click on Administration → Security → Users → Click on Tokens and Update Token → Give it a name → and click on Generate Token

click on update Token

Create a token with a name and generate

copy Token

Goto Jenkins Dashboard → Manage Jenkins → Credentials → Add Secret Text. It should look like this

You will this page once you click on create

Now, go to Dashboard → Manage Jenkins → System and Add like the below image.

Click on Apply and Save

The Configure System option is used in Jenkins to configure different server

Global Tool Configuration is used to configure different tools that we install using Plugins

We will install a sonar scanner in the tools.

In the Sonarqube Dashboard add a quality gate also

Administration–> Configuration–>Webhooks

Click on Create

Add details

#in url section of quality gate
<http://jenkins-public-ip:8080>/sonarqube-webhook/

Let’s go to our Pipeline and add the script in our Pipeline Script.

pipeline{
    agent any
    tools{
        jdk 'jdk17'
        nodejs 'node16'
    }
    environment {
        SCANNER_HOME=tool 'sonar-scanner'
    }
    stages {
        stage('clean workspace'){
            steps{
                cleanWs()
            }
        }
        stage('Checkout from Git'){
            steps{
                git branch: 'main', url: 'https://github.com/Aj7Ay/Amazon-FE.git'
            }
        }
        stage("Sonarqube Analysis "){
            steps{
                withSonarQubeEnv('sonar-server') {
                    sh ''' $SCANNER_HOME/bin/sonar-scanner -Dsonar.projectName=Amazon \
                    -Dsonar.projectKey=Amazon '''
                }
            }
        }
        stage("quality gate"){
           steps {
                script {
                    waitForQualityGate abortPipeline: false, credentialsId: 'Sonar-token'
                }
            }
        }
        stage('Install Dependencies') {
            steps {
                sh "npm install"
            }
        }
    }
}

Click on Build now, you will see the stage view like this

To see the report, you can go to Sonarqube Server and go to Projects.

You can see the report has been generated and the status shows as passed. You can see that there are 1k lines it scanned. To see a detailed report, you can go to issues.

GotoDashboard → Manage Jenkins → Plugins → OWASP Dependency-Check. Click on it and install it without restart.

First, we configured the Plugin and next, we had to configure the Tool

Goto Dashboard → Manage Jenkins → Tools →

Click on Apply and Save here.

Now go configure → Pipeline and add this stage to your pipeline and build.

stage('OWASP FS SCAN') {
            steps {
                dependencyCheck additionalArguments: '--scan ./ --disableYarnAudit --disableNodeAudit', odcInstallation: 'DP-Check'
                dependencyCheckPublisher pattern: '**/dependency-check-report.xml'
            }
        }
        stage('TRIVY FS SCAN') {
            steps {
                sh "trivy fs . > trivyfs.txt"
            }
        }

The stage view would look like this,

You will see that in status, a graph will also be generated and Vulnerabilities.

We need to install the Docker tool in our system, Goto Dashboard → Manage Plugins → Available plugins → Search for Docker and install these plugins

Docker

Docker Commons

Docker Pipeline

Docker API

docker-build-step

and click on install without restart

Now, goto Dashboard → Manage Jenkins → Tools →

Add DockerHub Username and Password under Global Credentials

Add this stage to Pipeline Script

stage("Docker Build & Push"){
            steps{
                script{
                   withDockerRegistry(credentialsId: 'docker', toolName: 'docker'){
                       sh "docker build -t amazon ."
                       sh "docker tag amazon sevenajay/amazon:latest "
                       sh "docker push sevenajay/amazon:latest "
                    }
                }
            }
        }
        stage("TRIVY"){
            steps{
                sh "trivy image sevenajay/amazon:latest > trivyimage.txt"
            }
        }

You will see the output below, with a dependency trend.

When you log in to Dockerhub, you will see a new image is created

Now Run the container to see if the game coming up or not by adding the below stage

stage('Deploy to container'){
            steps{
                sh 'docker run -d --name amazon -p 3000:3000 sevenajay/amazon:latest'
            }
        }

stage view

<Jenkins-public-ip:3000>

You will get this output

Let’s destroy everything

Go to VS Code and provide the below command (or) Go to the path where you provisioned the Ec2 instance

terraform destroy --auto-approve

In this age of digital transformation, safeguarding your applications is no longer an option but a necessity. The synergy of Terraform, Jenkins, SonarQube, and Trivy empowers us to not only deploy our applications with speed and efficiency but also to do so with an unwavering focus on security. We hope this guide has been a valuable resource in your journey towards embracing DevSecOps principles and securing your Amazon app deployments on AWS. Remember, the world of technology is ever-evolving, and so are the threats that come with it. Stay vigilant, stay informed, and continue to adapt your DevSecOps practices to stay ahead in the realm of secure and efficient application development. Thank you for joining us, and we wish you every success in your DevSecOps endeavours.
