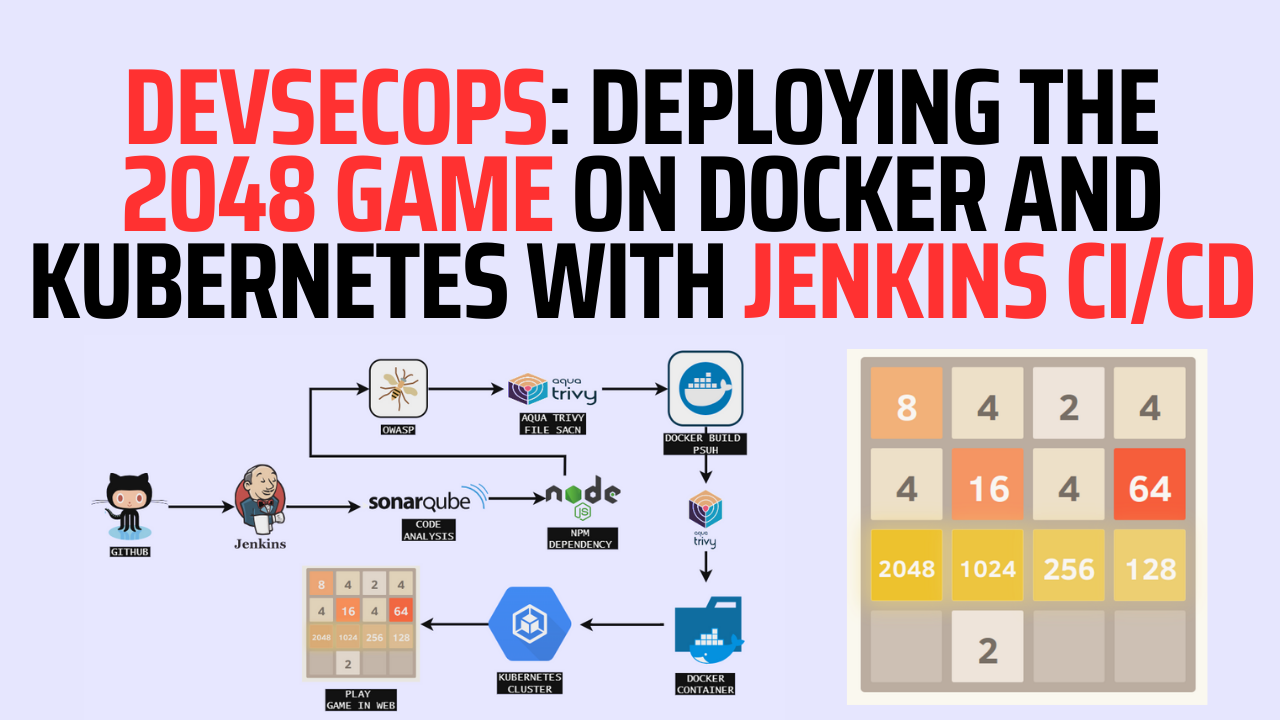

Deploying 2048 Game on Docker and Kubernetes with Jenkins CI/CD

Hello friends, we will be deploying a React Js 2048 Game. We will be using Jenkins as a CICD tool and deploying our application on a Docker container and Kubernetes Cluster. I Hope this detailed blog is useful.

CLICK HERE FOR GITHUB REPOSITORY

Steps:-

Step 1 — Launch an Ubuntu(22.04) T2 Large Instance

Step 2 — Install Jenkins, Docker and Trivy. Create a Sonarqube Container using Docker.

Step 3 — Install Plugins like JDK, Sonarqube Scanner, Nodejs, and OWASP Dependency Check.

Step 4 — Create a Pipeline Project in Jenkins using a Declarative Pipeline

Step 5 — Install OWASP Dependency Check Plugins

Step 6 — Docker Image Build and Push

Step 7 — Deploy the image using Docker

Step 8 — Kubernetes master and slave setup on Ubuntu (20.04)

Step 9 — Access the Game on Browser.

Step 10 — Terminate the AWS EC2 Instances.

Now, let’s get started and dig deeper into each of these steps:-

Launch an AWS T2 Large Instance. Use the image as Ubuntu. You can create a new key pair or use an existing one. Enable HTTP and HTTPS settings in the Security Group and open all ports (not best case to open all ports but just for learning purposes it’s okay).

Connect to your console, and enter these commands to Install Jenkins

vi jenkins.sh
#!/bin/bash
sudo apt update -y
#sudo apt upgrade -y
wget -O - https://packages.adoptium.net/artifactory/api/gpg/key/public | tee /etc/apt/keyrings/adoptium.asc
echo "deb [signed-by=/etc/apt/keyrings/adoptium.asc] https://packages.adoptium.net/artifactory/deb $(awk -F= '/^VERSION_CODENAME/{print$2}' /etc/os-release) main" | tee /etc/apt/sources.list.d/adoptium.list
sudo apt update -y
sudo apt install temurin-17-jdk -y
/usr/bin/java --version
curl -fsSL https://pkg.jenkins.io/debian-stable/jenkins.io-2023.key | sudo tee \
                  /usr/share/keyrings/jenkins-keyring.asc > /dev/null
echo deb [signed-by=/usr/share/keyrings/jenkins-keyring.asc] \
                  https://pkg.jenkins.io/debian-stable binary/ | sudo tee \
                              /etc/apt/sources.list.d/jenkins.list > /dev/null
sudo apt-get update -y
sudo apt-get install jenkins -y
sudo systemctl start jenkins
sudo systemctl status jenkins
sudo chmod 777 jenkins.sh
./jenkins.sh

Once Jenkins is installed, you will need to go to your AWS EC2 Security Group and open Inbound Port 8080, since Jenkins works on Port 8080.

Now, grab your Public IP Address

EC2 Public IP Address:8080
sudo cat /var/lib/jenkins/secrets/initialAdminPassword

Unlock Jenkins using an administrative password and install the suggested plugins.

Jenkins will now get installed and install all the libraries.

Create a user click on save and continue.

Jenkins Getting Started Screen.

sudo apt-get update
sudo apt-get install docker.io -y
sudo usermod -aG docker $USER
newgrp docker
sudo chmod 777 /var/run/docker.sock

After the docker installation, we create a sonarqube container (Remember to add 9000 ports in the security group).

docker run -d --name sonar -p 9000:9000 sonarqube:lts-community

Now our sonarqube is up and running

Enter username and password, click on login and change password

username admin
password admin

Update New password, This is Sonar Dashboard.

vi trivy.sh
sudo apt-get install wget apt-transport-https gnupg lsb-release -y
wget -qO - https://aquasecurity.github.io/trivy-repo/deb/public.key | gpg --dearmor | sudo tee /usr/share/keyrings/trivy.gpg > /dev/null
echo "deb [signed-by=/usr/share/keyrings/trivy.gpg] https://aquasecurity.github.io/trivy-repo/deb $(lsb_release -sc) main" | sudo tee -a /etc/apt/sources.list.d/trivy.list
sudo apt-get update
sudo apt-get install trivy -y

Next, we will log in to Jenkins and start to configure our Pipeline in Jenkins

Goto Manage Jenkins →Plugins → Available Plugins →

Install below plugins

1 → Eclipse Temurin Installer (Install without restart)

2 → SonarQube Scanner (Install without restart)

3 → NodeJs Plugin (Install Without restart)

Goto Manage Jenkins → Tools → Install JDK(17) and NodeJs(16)→ Click on Apply and Save

create a job as 2048 Name, select pipeline and click on ok.

Grab the Public IP Address of your EC2 Instance, Sonarqube works on Port 9000, so <Public IP>:9000. Goto your Sonarqube Server. Click on Administration → Security → Users → Click on Tokens and Update Token → Give it a name → and click on Generate Token

click on update Token

Create a token with a name and generate

copy Token

Goto Jenkins Dashboard → Manage Jenkins → Credentials → Add Secret Text. It should look like this

You will this page once you click on create

Now, go to Dashboard → Manage Jenkins → System and Add like the below image.

Click on Apply and Save

The Configure System option is used in Jenkins to configure different server

Global Tool Configuration is used to configure different tools that we install using Plugins

We will install a sonar scanner in the tools.

In the Sonarqube Dashboard add a quality gate also

Administration–> Configuration–>Webhooks

Click on Create

Add details

#in url section of quality gate
http://jenkins-public-ip:8080/sonarqube-webhook/

Let’s go to our Pipeline and add the script in our Pipeline Script.

pipeline{
    agent any
    tools{
        jdk 'jdk17'
        nodejs 'node16'
    }
    environment {
        SCANNER_HOME=tool 'sonar-scanner'
    }
    stages {
        stage('clean workspace'){
            steps{
                cleanWs()
            }
        }
        stage('Checkout from Git'){
            steps{
                git branch: 'master', url: 'https://github.com/Aj7Ay/2048-React-CICD.git'
            }
        }
        stage("Sonarqube Analysis "){
            steps{
                withSonarQubeEnv('sonar-server') {
                    sh ''' $SCANNER_HOME/bin/sonar-scanner -Dsonar.projectName=Game \
                    -Dsonar.projectKey=Game '''
                }
            }
        }
        stage("quality gate"){
           steps {
                script {
                    waitForQualityGate abortPipeline: false, credentialsId: 'Sonar-token'
                }
            }
        }
        stage('Install Dependencies') {
            steps {
                sh "npm install"
            }
        }
    }
}

Click on Build now, you will see the stage view like this

To see the report, you can go to Sonarqube Server and go to Projects.

You can see the report has been generated and the status shows as passed. You can see that there are 838 lines. To see a detailed report, you can go to issues.

GotoDashboard → Manage Jenkins → Plugins → OWASP Dependency-Check. Click on it and install it without restart.

First, we configured the Plugin and next, we had to configure the Tool

Goto Dashboard → Manage Jenkins → Tools →

Click on Apply and Save here.

Now go configure → Pipeline and add this stage to your pipeline and build.

stage('OWASP FS SCAN') {
            steps {
                dependencyCheck additionalArguments: '--scan ./ --disableYarnAudit --disableNodeAudit', odcInstallation: 'DP-Check'
                dependencyCheckPublisher pattern: '**/dependency-check-report.xml'
            }
        }
        stage('TRIVY FS SCAN') {
            steps {
                sh "trivy fs . > trivyfs.txt"
            }
        }

The stage view would look like this,

You will see that in status, a graph will also be generated and Vulnerabilities.

We need to install the Docker tool in our system, Goto Dashboard → Manage Plugins → Available plugins → Search for Docker and install these plugins

Docker

Docker Commons

Docker Pipeline

Docker API

docker-build-step

and click on install without restart

Now, goto Dashboard → Manage Jenkins → Tools →

Add DockerHub Username and Password under Global Credentials

Add this stage to Pipeline Script

stage("Docker Build & Push"){
            steps{
                script{
                   withDockerRegistry(credentialsId: 'docker', toolName: 'docker'){
                       sh "docker build -t 2048 ."
                       sh "docker tag 2048 sevenajay/2048:latest "
                       sh "docker push sevenajay/2048:latest "
                    }
                }
            }
        }
        stage("TRIVY"){
            steps{
                sh "trivy image sevenajay/2048:latest > trivy.txt"
            }
        }

You will see the output below, with a dependency trend.

When you log in to Dockerhub, you will see a new image is created

Now Run the container to see if the game coming up or not by adding below stage

stage('Deploy to container'){
            steps{
                sh 'docker run -d --name 2048 -p 3000:3000 sevenajay/2048:latest'
            }
        }

stage view

<Jenkins-public-ip:3000>

You will get this output

Play the game and make it 2048

Connect your machines to Putty or Mobaxtreme

Take-Two Ubuntu 20.04 instances one for k8s master and the other one for worker.

Install Kubectl on Jenkins machine also.

sudo apt update
sudo apt install curl
curl -LO https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl
sudo install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl
kubectl version --client
sudo hostnamectl set-hostname K8s-Master
sudo hostnamectl set-hostname K8s-Worker
sudo apt-get update
sudo apt-get install -y docker.io
sudo usermod –aG docker Ubuntu
newgrp docker
sudo chmod 777 /var/run/docker.sock
sudo curl -s https://packages.cloud.google.com/apt/doc/apt-key.gpg | sudo apt-key add -
sudo tee /etc/apt/sources.list.d/kubernetes.list <<EOF
deb https://apt.kubernetes.io/ kubernetes-xenial main
EOF
sudo apt-get update
sudo apt-get install -y kubelet kubeadm kubectl
sudo snap install kube-apiserver
sudo kubeadm init --pod-network-cidr=10.244.0.0/16
# in case your in root exit from it and run below commands
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
sudo kubeadm join <master-node-ip>:<master-node-port> --token <token> --discovery-token-ca-cert-hash <hash>

Copy the config file to Jenkins master or the local file manager and save it

copy it and save it in documents or another folder save it as secret-file.txt

Note: create a secret-file.txt in your file explorer save the config in it and use this at the kubernetes credential section.

Install Kubernetes Plugin, Once it’s installed successfully

goto manage Jenkins –> manage credentials –> Click on Jenkins global –> add credentials

final step to deploy on the Kubernetes cluster

stage('Deploy to kubernets'){
            steps{
                script{
                    withKubeConfig(caCertificate: '', clusterName: '', contextName: '', credentialsId: 'k8s', namespace: '', restrictKubeConfigAccess: false, serverUrl: '') {
                       sh 'kubectl apply -f deployment.yaml'
                  }
                }
            }
        }

stage view

In the Kubernetes cluster give this command

kubectl get all
kubectl get svc #use anyone

<public-ip-of-slave:service port>

output:

pipeline{
    agent any
    tools{
        jdk 'jdk17'
        nodejs 'node16'
    }
    environment {
        SCANNER_HOME=tool 'sonar-scanner'
    }
    stages {
        stage('clean workspace'){
            steps{
                cleanWs()
            }
        }
        stage('Checkout from Git'){
            steps{
                git branch: 'master', url: 'https://github.com/Aj7Ay/2048-React-CICD.git'
            }
        }
        stage("Sonarqube Analysis "){
            steps{
                withSonarQubeEnv('sonar-server') {
                    sh ''' $SCANNER_HOME/bin/sonar-scanner -Dsonar.projectName=Game \
                    -Dsonar.projectKey=Game '''
                }
            }
        }
        stage("quality gate"){
           steps {
                script {
                    waitForQualityGate abortPipeline: false, credentialsId: 'Sonar-token'
                }
            }
        }
        stage('Install Dependencies') {
            steps {
                sh "npm install"
            }
        }
        stage('OWASP FS SCAN') {
            steps {
                dependencyCheck additionalArguments: '--scan ./ --disableYarnAudit --disableNodeAudit', odcInstallation: 'DP-Check'
                dependencyCheckPublisher pattern: '**/dependency-check-report.xml'
            }
        }
        stage('TRIVY FS SCAN') {
            steps {
                sh "trivy fs . > trivyfs.txt"
            }
        }
        stage("Docker Build & Push"){
            steps{
                script{
                   withDockerRegistry(credentialsId: 'docker', toolName: 'docker'){
                       sh "docker build -t 2048 ."
                       sh "docker tag 2048 sevenajay/2048:latest "
                       sh "docker push sevenajay/2048:latest "
                    }
                }
            }
        }
        stage("TRIVY"){
            steps{
                sh "trivy image sevenajay/2048:latest > trivy.txt"
            }
        }
        stage('Deploy to container'){
            steps{
                sh 'docker run -d --name 2048 -p 3000:3000 sevenajay/2048:latest'
            }
        }
        stage('Deploy to kubernets'){
            steps{
                script{
                    withKubeConfig(caCertificate: '', clusterName: '', contextName: '', credentialsId: 'k8s', namespace: '', restrictKubeConfigAccess: false, serverUrl: '') {
                       sh 'kubectl apply -f deployment.yaml'
                  }
                }
            }
        }
    }
}
mrcloudbook.com avatar

Ajay Kumar Yegireddi is a DevSecOps Engineer and System Administrator, with a passion for sharing real-world DevSecOps projects and tasks. Mr. Cloud Book, provides hands-on tutorials and practical insights to help others master DevSecOps tools and workflows. Content is designed to bridge the gap between development, security, and operations, making complex concepts easy to understand for both beginners and professionals.

Comments

2 responses to “Deploying 2048 Game on Docker and Kubernetes with Jenkins CI/CD”

  1. vikranth avatar

    Hi Ajay,

    We i am trying to build and push to dockerhub, it is failing due to this error.
    Please find the below error
    + docker build -t 2048 .

    DEPRECATED: The legacy builder is deprecated and will be removed in a future release.

    Install the buildx component to build images with BuildKit:

    https://docs.docker.com/go/buildx/

    Sending build context to Docker daemon 251.8MB

    Step 1/8 : FROM node:16

    —> 1ddc7e4055fd

    Step 2/8 : WORKDIR /app

    —> Using cache

    —> 75bf19fac687

    Step 3/8 : COPY package*.json ./

    —> 15f541247f56

    Step 4/8 : RUN npm install

    —> Running in 28829db9839b

    npm WARN deprecated urix@0.1.0: Please see https://github.com/lydell/urix#deprecated

    npm WARN deprecated w3c-hr-time@1.0.2: Use your platform’s native performance.now() and performance.timeOrigin.

    npm WARN deprecated stable@0.1.8: Modern JS already guarantees Array#sort() is a stable sort, so this library is deprecated. See the compatibility table on MDN: https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Global_Objects/Array/sort#browser_compatibility

    npm WARN deprecated source-map-url@0.4.1: See https://github.com/lydell/source-map-url#deprecated

    npm WARN deprecated sourcemap-codec@1.4.8: Please use @jridgewell/sourcemap-codec instead

    npm WARN deprecated source-map-resolve@0.6.0: See https://github.com/lydell/source-map-resolve#deprecated

    npm WARN deprecated sane@4.1.0: some dependency vulnerabilities fixed, support for node < 10 dropped, and newer ECMAScript syntax/features added

    npm WARN deprecated rollup-plugin-terser@5.3.1: This package has been deprecated and is no longer maintained. Please use @rollup/plugin-terser

    npm WARN deprecated resolve-url@0.2.1: https://github.com/lydell/resolve-url#deprecated

    npm WARN deprecated workbox-google-analytics@5.1.4: It is not compatible with newer versions of GA starting with v4, as long as you are using GAv3 it should be ok, but the package is not longer being maintained

    npm WARN deprecated querystring@0.2.1: The querystring API is considered Legacy. new code should use the URLSearchParams API instead.

    npm WARN deprecated rollup-plugin-babel@4.4.0: This package has been deprecated and is no longer maintained. Please use @rollup/plugin-babel.

    npm ERR! code ENOSPC

    npm ERR! syscall write

    npm ERR! errno -28

    npm ERR! nospc ENOSPC: no space left on device, write

    npm ERR! nospc There appears to be insufficient space on your system to finish.

    npm ERR! nospc Clear up some disk space and try again.

    npm ERR! A complete log of this run can be found in:

    npm ERR! /root/.npm/_logs/2024-02-15T12_39_36_120Z-debug-0.log

    No space left on device

  2. make sure you have added jenkins user to docker group ( same like adding ubuntu user)
    checker docker credentials are right
    your tag and your docker hub user name should be same

Leave a Reply

Your email address will not be published. Required fields are marked *
